Bicycle POM 6002 High Speed Ceramic Bearings

Brand Name : WI-TECH

Model Number : 6002

Certification : Rohs

Place of Origin : China

MOQ : 10 pcs

Price : 0.2USD--100USD

Payment Terms : T/T, Western Union

Supply Ability : 100,000 pcs/month

Delivery Time : 10-30 days

Packaging Details : Carton

Type : plastic ball bearing

Bore size : 2 - 25 mm

Precision rating : P0 P6 P5 P4 P2

Number of row : Single Row

Structure : Deep Groove

Material : POM

Application : Machinery,Skateboard/roller skate/finger skateboard,precise instrument,navigation

Outside diameter : 2 - 150 mm

Package : cartons

Lubrication : Dry/self-lubricating

Cage : Nylon Cage,Stainless steel cage

Service : OEM Customized Services

Feature : Long Life /High Speed/Smooth/low noise

Contact Now

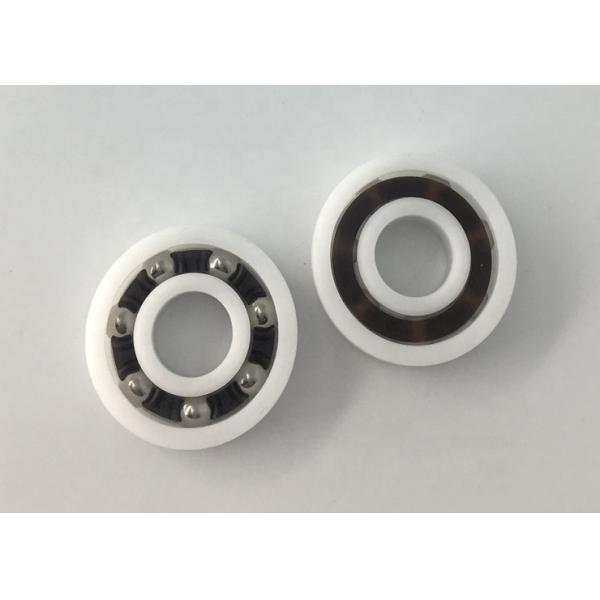

Long life plastic ball bearing, deep groove ball bearing POM 6002 for machine, bicycle

POM is a material with good mechanical strength and wear resistance, suitable for making more precise plastic bearings. Its good self-lubricating performance and low coefficient of friction, on the basis of maintaining the traditional advantages of plastic bearings, can be applied to precision and higher speed operation. Among them, POM plastic bearings are the most widely used among all plastic bearings. Generally, the inner and outer balls use POM or PA, and the cage uses glass fiber reinforced nylon 66. The balls are glass balls, stainless steel balls or ceramic balls. This bearing performs well in alkaline environments, but is not suitable for operation in acidic environments.

Specification of Deep Groove Ball Bearing POM
Model Number
 Bore Dia Outer Dia Width Dynamic Radial Static Radial Max Speed
(d) (D) (B)
　 　 　 (Newtons) (Newtons) (X1000 RPM)
682 2 mm 5mm 1.5mm 43.2 12 60
692 2 mm 6mm 2.3mm 84.3 23.7 54
602 2 mm 7mm 2.8mm 98.4 30.9 42.6
683 3 mm 7mm 2mm 79.2 27 45
693 3 mm 8mm 3mm 142.2 43.2 40.2
603 3 mm 9mm 3mm 69 45.3 40.2
623 3 mm 10mm 4mm 160.8 52.5 36
633 3 mm 13mm 5mm 331.8 117 28.8
684 4 mm 9mm 2.5mm 163.5 54.6 37.8
694 4 mm 11mm 4mm 244.2 84 33.6
604 4 mm 12mm 4mm 244.2 84 33.6
624 4 mm 13mm 5mm 331.8 117 28.8
634 4 mm 16mm 5mm 341.7 125.4 25.8
685 5mm 11mm 3mm 182.7 67.8 31.8
695 5mm 13mm 4mm 274.8 103.8 30
605 5 mm 14mm 5mm 339 121.8 30
625 5 mm 16mm 5mm 441 162 25.8
635 5 mm 19mm 6mm 595.8 215.1 24
686 6 mm 13mm 3.5mm 276 106.2 30
696 6 mm 15mm 5mm 341.7 125.4 27
606 6 mm 17mm 6mm 577.2 203.1 27
626 6 mm 19mm 6mm 595.8 215.1 24
636 6mm 22mm 7mm 849.9 341.4 21.6
687 7 mm 14mm 3.5mm 299.1 123 30
697 7 mm 17mm 5mm 409.2 172.5 25.8
607 7 mm 19mm 6mm 595.8 215.1 25.8
627 7 mm 22mm 7mm 838.2 330.9 21.6
637 7 mm 26mm 9mm 1163.7 475.8 20.4
688 8mm 16mm 4mm 319.2 142.2 25.8
698 8mm 19mm 6mm 570.6 220.2 25.8
608 8mm 22mm 7mm 839.7 330.9 24
628 8mm 24mm 8mm 849.9 341.4 20.4
638 8 mm 28mm 9mm 1163.7 475.8 20.4
679 9mm 14mm 3mm 234.3 112.2 25.2
689 9 mm 17mm 4mm 338.4 160.2 25.8
699 9mm 20mm 6mm 629.1 259.5 24
609 9mm 24mm 7mm 855.9 346.5 22.8
629 9 mm 26mm 8mm 1163.7 475.8 20.4
639 9mm 30mm 10mm 1188 499.2 18
6700 10mm 15mm 3mm 257.1 130.5 10.2
63800 10mm 19mm 7mm 516 252 24
6800 10mm 19mm 5mm 516 252 24
6900 10mm 22mm 6mm 810 381 22.2
6000 10 mm 26mm 8mm 1365 585 21.6
6200 10 mm 30mm 9mm 1530 720 17.4
6300 10 mm 35mm 11mm 2430 1035 16.2
6701 12mm 18mm 4mm 278.4 159.6 9
63801 12mm 21mm 7mm 576 312 21.6
6801 12mm 21mm 5mm 576 312 21.6
6901 12mm 24mm 6mm 867 438 19.8
6001 12 mm 28mm 8mm 1530 720 19.2
6201 12 mm 32mm 10mm 2040 915 16.2
6301 12 mm 37mm 12mm 2910 1260 15
6702 15mm 21mm 4mm 281.1 174.3 7.8
63802 15mm 24mm 7mm 621 378 18.6
6802 15mm 24mm 5mm 621 378 18.6
6902 15mm 28mm 7mm 1299 675 17.4
6002 15 mm 32mm 9mm 1680 855 16.2
6202 15 mm 35mm 11mm 2295 1125 14.4
6302 15 mm 42mm 13mm 3420 1635 12
6703 17mm 23mm 4mm 299.7 197.1 6.6
63803 17mm 26mm 7mm 669 438 17.4
6803 17mm 26mm 5mm 669 438 17.4
6903 17mm 30mm 7mm 1377 768 15.6
6003 17 mm 35mm 10mm 1800 975 15
6203 17 mm 40mm 12mm 2865 1440 12.6
6303 17 mm 47mm 14mm 4080 1995 10.8
6704 20mm 27mm 4mm 303 216.6 6
63804 20mm 32mm 10mm 1206 738 15
6804 20mm 32mm 7mm 1206 738 15
6904 20mm 37mm 9mm 1914 1104 13.2
6004 20 mm 42mm 12mm 2820 1515 12.6
6204 20 mm 47mm 14mm 3840 1995 10.2
6304 20 mm 52mm 15mm 4770 2355 10.2
6705 25mm 32mm 4mm 330 251.4 4.8
63805 25mm 37mm 10mm 1290 882 12.6
6805 25mm 37mm 7mm 1290 882 12.6
6905 25mm 42mm 9mm 2103 1365 11.4
6005 25 mm 47mm 12mm 3030 1755 10.8
6205 25 mm 52mm 15mm 4200 2355 9
6305 25 mm 62mm 17mm 6180 3390 7.8
6706 30mm 37mm 4mm 342 284.1 4.2
63806 30mm 42mm 10mm 1361.4 1020.6 10.8
6806 30mm 42mm 7mm 1335 1032 10.8
6906 30mm 47mm 9mm 2172 1503 10.2
6006 30 mm 55mm 13mm 3960 2475 9
6206 30 mm 62mm 16mm 5850 3390 7.8
6306 30 mm 72mm 19mm 8010 4500 7.2
6707 35mm 44mm 5mm 558 489 3.6
6807 35mm 47mm 7mm 1422 1146 9.6
6907 35mm 55mm 10mm 3270 2325 8.4
6007 35 mm 62mm 14mm 4770 3090 7.8
6207 35 mm 72mm 17mm 7710 4620 6.6
6307 35 mm 80mm 21mm 10020 5790 6
6708 40mm 50mm 6mm 753 669 3
6808 40mm 52mm 7mm 1479 1254 8.4
6908 40mm 62mm 12mm 4110 2976 7.8
6008 40 mm 68mm 15mm 5010 3450 7.2
6208 40 mm 80mm 18mm 8730 5340 6
6308 40 mm 90mm 23mm 12210 7200 5.4
6709 45mm 55mm 6mm 771 720 2.76
6809 45mm 58mm 7mm 1863 1614 7.8
6909 45mm 68mm 12mm 4230 3270 6.6
6009 45 mm 75mm 16mm 6300 4530 6.6
6209 45 mm 85mm 19mm 9810 6090 5.52
6309 45 mm 100mm 25mm 15900 9600 4.8
6710 50mm 62mm 6mm 801 795 2.46
6810 50mm 65mm 7mm 1851 1728 6.6
6910 50mm 72mm 12mm 4350 3510 6.6
6010 50 mm 80mm 16mm 6540 4980 5.94
6210 50 mm 90mm 20mm 10530 6990 5.1
6310 50 mm 110mm 27mm 18600 11490 4.5
6811 55mm 72mm 9mm 2640 2424 6
6911 55mm 80mm 13mm 4980 4230 5.76
6011 55 mm 90mm 18mm 8490 6360 5.4
6211 55 mm 100mm 21mm 13020 8820 4.5
6311 55 mm 120mm 29mm 21480 13500 4.02
6812 60mm 78mm 10mm 3450 3180 5.64
6912 60mm 85mm 13mm 6060 5190 5.34
6012 60 mm 95mm 18mm 8820 6960 5.1
6212 60 mm 110mm 22mm 15720 10860 4.26
6312 60 mm 130mm 31mm 24570 15660 3.78
6813 65mm 85mm 10mm 3570 3450 5.16
6913 65mm 90mm 13mm 5190 4800 4.98
6013 65 mm 100mm 18mm 9150 7560 4.8
6213 65 mm 120mm 23mm 17160 12030 3.78
6313 65 mm 140mm 33mm 27810 17970 3.6
6814 70mm 90mm 10mm 3480 3540 4.86
6914 70mm 100mm 16mm 7110 6330 4.56
6014 70 mm 110mm 20mm 11430 9270 4.26
6214 70 mm 125mm 24mm 18660 13230 3.78
6314 70 mm 150mm 35mm 31200 20460 3.18
6815 75mm 95mm 10mm 3690 3840 4.56
6915 75mm 105mm 16mm 7200 6780 4.26
6015 75 mm 115mm 20mm 11880 10050 4.02
6215 75 mm 130mm 25mm 20220 14490 3.36
6315 75 mm 160mm 37mm 33900 23160 3
6816 80mm 100mm 10mm 3780 3990 4.26
6916 80mm 110mm 16mm 7440 7170 4.02
6016 80 mm 125mm 22mm 14280 11940 3.78
6216 80 mm 140mm 26mm 21810 15900 3.18
6316 80 mm 170mm 39mm 36900 26010 2.88
6817 85mm 110mm 13mm 5610 5700 3.96
6917 85mm 120mm 18mm 9570 8880 3.72
6017 85 mm 130mm 22mm 14850 12930 3.6
6217 85 mm 150mm 28mm 25200 18570 3
6317 85 mm 180mm 41mm 39900 29040 2.7
6818 90mm 115mm 13mm 5490 5850 3.72
6918 90mm 125mm 18mm 9720 9480 3.54
6018 90 mm 140mm 24mm 17460 14910 3.36
6218 90 mm 160mm 30mm 28830 21450 2.88
6318 90 mm 190mm 43mm 42900 32100 2.58
6819 95mm 120mm 13mm 5640 6090 3.54
6019 95 mm 145mm 24mm 18120 16170 3.18
6219 95 mm 170mm 32mm 32700 24570 2.7
6319 95 mm 200mm 45mm 45900 35700 3.18
6020 100 mm 150mm 24mm 18060 16260 3.18
6220 100 mm 180mm 34mm 36600 27930 2.58
6320 100 mm 215mm 47mm 51900 42300 2.04
6021 105 mm 160mm 26mm 21690 19740 2.88
6221 105 mm 190mm 36mm 39900 31500 2.4
6321 105 mm 225mm 49mm 55200 45900 1.92
